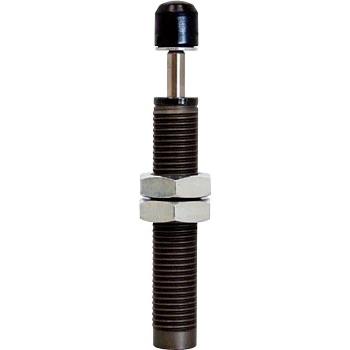

SMC Shock Absorber RBC1412
Automatically adjusts for high speed low load or low speed high load applications
Maximum impact speed 5m/s
At max energy absorption per cycle, max operating cycle/min can increase in proportion to energy absorption
Ambient temperature -10°C to +80°C
Spesification:
|
Stroke length: |
12 mm |
|
Collision velocity range: |
0.05 to 5 m/s |
|
Maximum energy absorption frequency: |
45 cycle/min |
|
Maximum energy absorption per cycle: |
19.6 J |
|
Shock absorber type: |
Non-Adjustable |
|
Extended spring force: |
1.54 lbs |
|
Compressed spring force: |
3.59 lbs |
|
Overall length: |
92.8 mm |
|
Overall width: |
14 mm |
|
Included options: |
Cap |
