SMC MXH6-40Z
Rated 3.5/5 based on 11 customer reviews

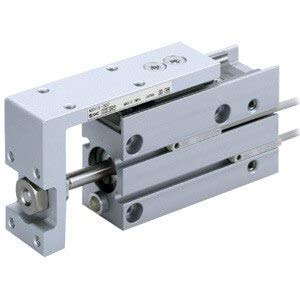

SMC MXH6-40Z

$210.10

The MXH compact slide table provides a convenient integration of an endless track linear guide and air cylinder, with higher load carrying capabilities and longer standard strokes when compared to previous series. The use of a linear guide provides outstanding displacement accuracy against moments, and excellent parallelism of travel. The compact narrow profile of the unit allows for parallel position of several slides in a limited space. The MXH is suitable for a wide range of industries, which require material or tool handling, and precision non-rotating accuracy. The cylinder can be mounted in 4 directions and piping can be connected from 3 sides. MXH is available in 4 bore sizes from 6mm to 10mm and standard strokes up to 60mm.

Spesification:

SMC Part Description: CYL, COMPACT SLIDE TABLE
SMC Products Line: ACTUATOR
SMC Family: MXH HIGH RIGIDITY GUIDE CYL
SMC Family Code: CE
SMC Class Description: 6MM MXH DBL-ACT AUTO-SW

The MXH compact slide table provides a convenient integration of an endless track linear guide and air cylinder, with higher load carrying capabilities and longer standard strokes when compared to previous series. The use of a linear guide provides outstanding displacement accuracy against moments, and excellent parallelism of travel. The compact narrow profile of the unit allows for parallel position of several slides in a limited space. The MXH is suitable for a wide range of industries, which require material or tool handling, and precision non-rotating accuracy. The cylinder can be mounted in 4 directions and piping can be connected from 3 sides. MXH is available in 4 bore sizes from 6mm to 10mm and standard strokes up to 60mm.

Spesification:

SMC Part Description: CYL, COMPACT SLIDE TABLE
SMC Products Line: ACTUATOR
SMC Family: MXH HIGH RIGIDITY GUIDE CYL
SMC Family Code: CE
SMC Class Description: 6MM MXH DBL-ACT AUTO-SW
