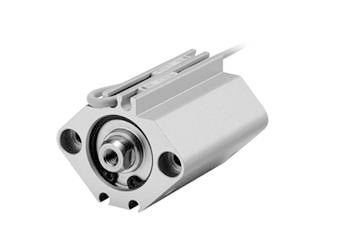

SMC has redesigned the CQ2 compact cylinder with a new body, making it possible to mount auto switches on any of the 4 surfaces, depending on the installation conditions. Auto switch mounting grooves have replaced the CQ2s mounting rails, preventing projection of auto switches and improving ease and safety of work.
- Double acting, single rod, compact cylinder
- Bore sizes *: 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
- Standard stroke range *: 5 to 100
- Port threads: M *; Rc, NPT or G *
- Auto switch capable
SMC Part Description: CYLINDER
SMC Products Line: ACTUATOR
SMC Family: CQ2-Z COMPACT CYLINDER
SMC Family Code: GE
SMC Class Description: 16MM CQ2-Z DBL-ACT AUTO-SW
