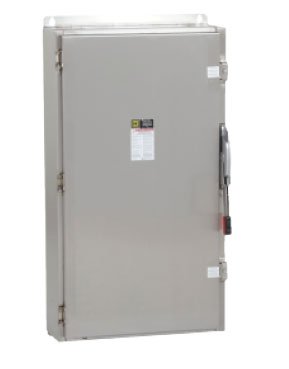

HU365DS
Safety switch, heavy duty, non fusible, 400A, 3 poles, 350 hp, 600 VAC/DC, NEMA 4, 4X, 5, 304 steel
Main
Product : Single Throw Safety Switch
Duty Rating : Heavy duty
Device Application : Heavy application
Disconnect Type : Non-fusible disconnect
Factory Installed Neutral : None
Phase : 3 phase
Number of Poles : 3
Current Rating : 400 A
Voltage Rating : 600 V AC/DC
Enclosure Rating : NEMA 4/4X/5 stainless steel 304
Maximum Horse Power Rating : 125 hp 240 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52
250 hp 480 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52
350 hp 600 V at AC 50-60 Hz for 3 phase conforming to NEC 430.52
50 hp 250 V at DC
50 hp 600 V at DC
Complementary
Mounting Type : Surface
Electrical Connection : Lugs
Wiring configuration : 3-wire
Wire Size : AWG 1/0...750 kcmil copper or aluminium
Tightening torque : 550 lbf.in (62.14 N.m) (AWG 1/0...750 kcmil)
Depth : 10.13 in (257.30 mm)
Width : 26.25 in (666.75 mm)
Height : 46.25 in (1174.75 mm)
Product Weight : 169.98 lb(US) (77.1 kg)
