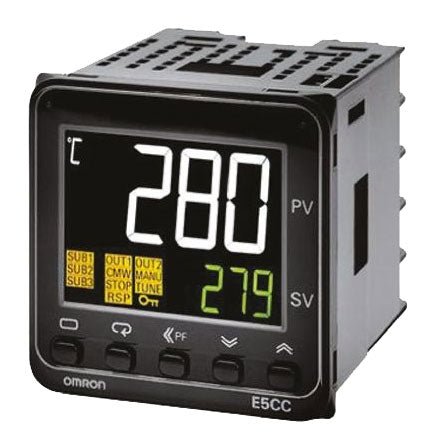

Omron E5CC-QX2ASM-800
Specifications
| Attribute | Value |
|---|---|
| Supply Voltage | 100 → 240 V ac |
| Size | 48 x 48mm |
| Number of Outputs | 1 |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +50°C |
| Range | -200 → +2300 (Thermocouple) °C, -200 → +850 (Platinum Resistance Thermometer) °C, 0 → +260 (Infrared Temperature Sensor) °C, 0 → 10 V, 0 → 20 mA |
| Display Colour | White |
| Input Type | Universal |
| Panel Depth | 72.1mm |
| Series | E5CC |
Specifications
| Attribute | Value |
|---|---|
| Supply Voltage | 100 → 240 V ac |
| Size | 48 x 48mm |
| Number of Outputs | 1 |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +50°C |
| Range | -200 → +2300 (Thermocouple) °C, -200 → +850 (Platinum Resistance Thermometer) °C, 0 → +260 (Infrared Temperature Sensor) °C, 0 → 10 V, 0 → 20 mA |
| Display Colour | White |
| Input Type | Universal |
| Panel Depth | 72.1mm |
| Series | E5CC |
