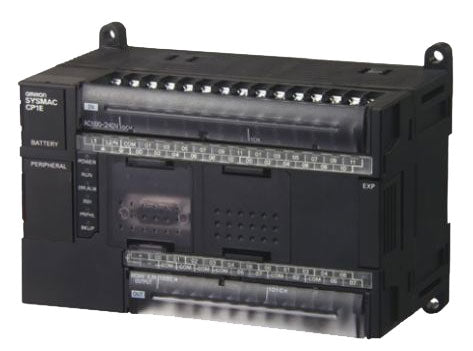

Omron CP1E-N40SDR-A
Specifications
| Attribute | Value |
|---|---|
| For Use With | CP1E Series |
| Number of I/O | 40 |
| Manufacturer Series | CP1E |
| Number of Inputs | 24 |
| Input Type | Pulse |
| Voltage Category | 85 → 264 V ac |
| Output Type | Relay |
| Number of Outputs | 16 (Relay) |
| Network Type | USB |
| Communication Port Type | RS232C, USB 2.0 |
| Program Capacity | 32 kB |
| Programming Interface | Computer |
| Maximum Inputs/Outputs | 160 |
| Length | 150mm |
| Number of Communication Ports | 2 |
| Width | 110mm |
| Programming Language Used | Ladder Logic |
| Battery Backup | Yes |
| Memory | 32 (Program Memory) kB, 8000 (Data Memory) Words |
| Mounting Type | DIN Rail |
| Maximum Operating Temperature | +55°C |
| Output Current | 2 A |
| Depth | 85mm |
| Minimum Operating Temperature | 0°C |
Specifications
| Attribute | Value |
|---|---|
| For Use With | CP1E Series |
| Number of I/O | 40 |
| Manufacturer Series | CP1E |
| Number of Inputs | 24 |
| Input Type | Pulse |
| Voltage Category | 85 → 264 V ac |
| Output Type | Relay |
| Number of Outputs | 16 (Relay) |
| Network Type | USB |
| Communication Port Type | RS232C, USB 2.0 |
| Program Capacity | 32 kB |
| Programming Interface | Computer |
| Maximum Inputs/Outputs | 160 |
| Length | 150mm |
| Number of Communication Ports | 2 |
| Width | 110mm |
| Programming Language Used | Ladder Logic |
| Battery Backup | Yes |
| Memory | 32 (Program Memory) kB, 8000 (Data Memory) Words |
| Mounting Type | DIN Rail |
| Maximum Operating Temperature | +55°C |
| Output Current | 2 A |
| Depth | 85mm |
| Minimum Operating Temperature | 0°C |
