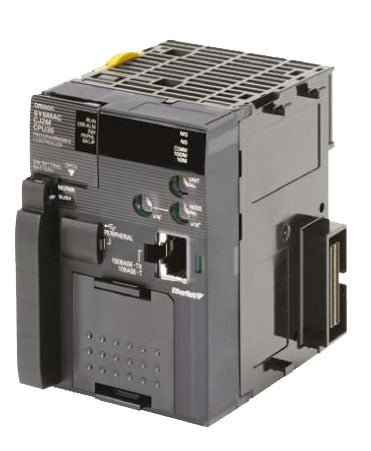

Omron CJ2M-CPU35
Specifications
| Attribute | Value |
|---|---|
| For Use With | CJ2M Series |
| Manufacturer Series | CJ2M |
| Voltage Category | 5 V dc |
| Output Type | Pulse |
| Network Type | Ethernet |
| Display Included | Yes |
| Communication Port Type | USB 2.0 |
| Program Capacity | 60000 Steps |
| Programming Interface | Computer |
| Battery Backup | Yes |
| Programming Language Used | Instruction List, Ladder Logic, SFC, Structured Text |
| Maximum Operating Temperature | +55°C |
| Length | 62mm |
| Depth | 84.5mm |
| Minimum Operating Temperature | 0°C |
| Maximum Inputs/Outputs | 2560 |
| Dimensions | 62 x 95.4 x 84.5 mm |
| Memory | 60K (Program Memory) Steps, 160K (Data Memory) Words |
| Number of Communication Ports | 1 |
| Width | 95.4mm |
Specifications
| Attribute | Value |
|---|---|
| For Use With | CJ2M Series |
| Manufacturer Series | CJ2M |
| Voltage Category | 5 V dc |
| Output Type | Pulse |
| Network Type | Ethernet |
| Display Included | Yes |
| Communication Port Type | USB 2.0 |
| Program Capacity | 60000 Steps |
| Programming Interface | Computer |
| Battery Backup | Yes |
| Programming Language Used | Instruction List, Ladder Logic, SFC, Structured Text |
| Maximum Operating Temperature | +55°C |
| Length | 62mm |
| Depth | 84.5mm |
| Minimum Operating Temperature | 0°C |
| Maximum Inputs/Outputs | 2560 |
| Dimensions | 62 x 95.4 x 84.5 mm |
| Memory | 60K (Program Memory) Steps, 160K (Data Memory) Words |
| Number of Communication Ports | 1 |
| Width | 95.4mm |
