Mitsubishi FR-F840-00380-2-60
Rated 3.5/5 based on 11 customer reviews
Categories
  • Fast Delivery
  • 99% Customers
    Feedbacks
  • 24/7 Support
  • Payment
    Secure System
  • Only OEM
    Brands
Mitsubishi Electric

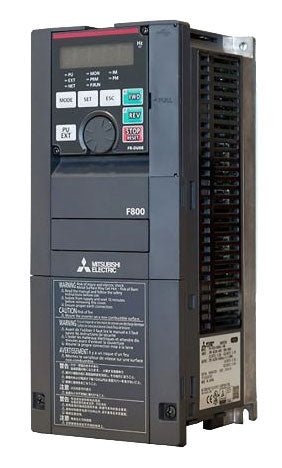

Mitsubishi FR-F840-00380-2-60

Add Your Review
  • Category: PLC
$1,265.63
Specifications
Attribute Value
Power Rating 18.5 kW
Phase 3
Supply Voltage 400 V ac
Current Rating 35 (LD) A, 38 (SLD) A
For Use With Compressor, Fan Application, Pump
Ambient Temperature -10 → +40 (SLD) °C, -10 → +50 (LD) °C
Overall Width 190mm
Overall Length 220mm
Overall Depth 300mm
Control Panel Yes
Drive Type PID Control
Filter Included Yes
Series F800
Function Motor Control
Mounting Type Panel
Standards Met EN 50598-2 Class IE2, EN 61800-5-2 SIL2, EN ISO 13849-1 PLd/Cat.3/EN 61508, IEC60721-3-3 Class 3C2
IP Rating IP20
Specifications
Attribute Value
Power Rating 18.5 kW
Phase 3
Supply Voltage 400 V ac
Current Rating 35 (LD) A, 38 (SLD) A
For Use With Compressor, Fan Application, Pump
Ambient Temperature -10 → +40 (SLD) °C, -10 → +50 (LD) °C
Overall Width 190mm
Overall Length 220mm
Overall Depth 300mm
Control Panel Yes
Drive Type PID Control
Filter Included Yes
Series F800
Function Motor Control
Mounting Type Panel
Standards Met EN 50598-2 Class IE2, EN 61800-5-2 SIL2, EN ISO 13849-1 PLd/Cat.3/EN 61508, IEC60721-3-3 Class 3C2
IP Rating IP20
