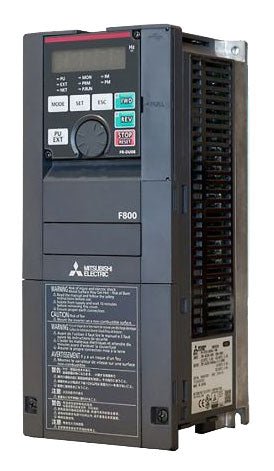

Mitsubishi FR-F840-00170-2-60
Specifications
| Attribute | Value |
|---|---|
| Power Rating | 7.5 kW |
| Phase | 3 |
| Supply Voltage | 400 V ac |
| Current Rating | 16 (LD) A, 17 (SLD) A |
| For Use With | Compressor, Fan Application, Pump |
| Ambient Temperature | -10 → +40 (SLD) °C, -10 → +50 (LD) °C |
| Overall Width | 170mm |
| Overall Length | 220mm |
| Overall Depth | 260mm |
| Control Panel | Yes |
| Drive Type | PID Control |
| Filter Included | Yes |
| Function | Motor Control |
| Series | F800 |
| IP Rating | IP20 |
| Standards Met | EN 50598-2 Class IE2, EN 61800-5-2 SIL2, EN ISO 13849-1 PLd/Cat.3/EN 61508, IEC60721-3-3 Class 3C2 |
| Mounting Type | Panel |
Specifications
| Attribute | Value |
|---|---|
| Power Rating | 7.5 kW |
| Phase | 3 |
| Supply Voltage | 400 V ac |
| Current Rating | 16 (LD) A, 17 (SLD) A |
| For Use With | Compressor, Fan Application, Pump |
| Ambient Temperature | -10 → +40 (SLD) °C, -10 → +50 (LD) °C |
| Overall Width | 170mm |
| Overall Length | 220mm |
| Overall Depth | 260mm |
| Control Panel | Yes |
| Drive Type | PID Control |
| Filter Included | Yes |
| Function | Motor Control |
| Series | F800 |
| IP Rating | IP20 |
| Standards Met | EN 50598-2 Class IE2, EN 61800-5-2 SIL2, EN ISO 13849-1 PLd/Cat.3/EN 61508, IEC60721-3-3 Class 3C2 |
| Mounting Type | Panel |
