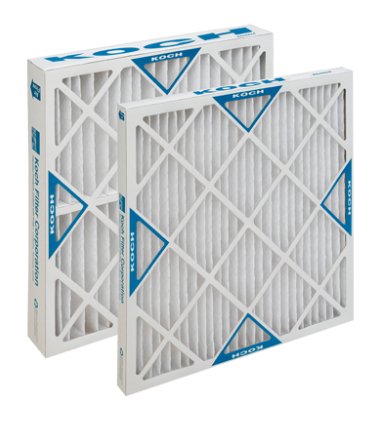

Koch Filter 102-701-007 Multi-Pleat XL8 1" High Capacity Size 16"x25"x1"
Rated 3.5/5 based on 11 customer reviews

Koch Filter 102-701-007 Multi-Pleat XL8 1" High Capacity Size 16"x25"x1"

$59.10 $113.65

Koch Filter 102-701-007 Multi-Pleat XL8 1" High Capacity Size 16"x25"x1", 12 ea/case

Part Number : 102-701-007
Size : 16"x25"x1"

Multi-Pleat XL8 (MERV 8) - High Capacity
High Capacity - 30% more media.
High Capacity XL8-HC filters are similar in construction to the Standard Capacity but have the added advantage of approximately 30% more media.
The additional media results in extended filter life, making the XL8-HC the ideal filter for use in filtration systems where filter change schedules are predicated on recommended final pressure drop readings.

Specifications:

  1. Efficiency: MERV 8 (ASHRAE Standard 52.2-2007)
  2. Final Resistance: 1.0" W.G.
  3. Rated Velocity: 300 FPM
  4. UL Rating - Class 2 per UL Standard 900
  5. Maximum Operating Temperature: 200 degrees Fahrenheit and 93 Celsius
  6. Tolerance: Height & Width - +/- 1/8"
  7. Tolerance: Depth - +/- 1/16"
