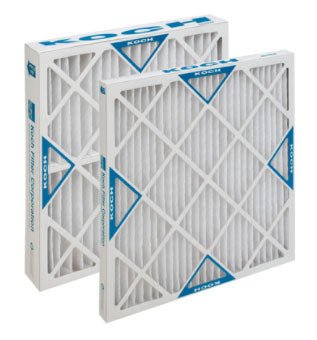

Koch Filter 102-700-019 Multi-Pleat XL8 2" Standard Capacity Size 20" x20" x2"
Rated 3.5/5 based on 11 customer reviews

Koch Filter 102-700-019 Multi-Pleat XL8 2" Standard Capacity Size 20" x20" x2"

$61.77 $118.78

Koch Filter 102-700-019 Multi-Pleat XL8 2" Standard Capacity Size 20" x20" x2"

PN    : 102-700-019
Size  : 20" x 20" x 2"


Multi-Pleat XL8
Standard Capacity XL8 filters provide a combination of efficiency, economy, and excellent overall performance.
Standard Capacity XL8 filters are an excellent choice in applications where filter change schedules are based on preventive maintenance schedules

     Multi-Pleat XL-8 (MERV 8) (2” Nominal Depth), Engineering Specification

    1.General
    • Filter shall be the Multi-Pleat SC XL-8 extended surface pleated air filter manufactured by Koch Filter
    • Filters shall be available in standard capacity pleat configuration with a depth of 2” (nominal -1- 3/4” actual)
    • Filters shall be classified UL and cUL per the UL 900 Standard

    2.Filter Materials and Construction

    • Media shall be 100% The media will not support microbial growth.
    • Media laminated to corrosion resistant expanded
    • Frame shall be a heavy duty, high strength, moisture resistant paperboard (24 point) double wall construction with an integral die-cut faceguard on the air entering and air leaving sides to prevent movement and protect the media pack and ensure media pack integrity during shipping and actual
    • The media pack shall be secured within the frame with an adhesive sealant to ensure leak free
    • Media laminated to corrosion resistant expanded
    • Frame shall be a heavy duty, high strength, moisture resistant paperboard (24 point) double wall construction with an integral die-cut faceguard on the air entering and air leaving sides to prevent movement and protect the media pack and ensure media pack integrity during shipping and actual
    • The media pack shall be secured within the frame with an adhesive sealant to ensure leak free

    3.Filter Performance

    • Filters shall be a MERV 8 when tested in accordance with the ASHRAE 2-2007 Test Standard
    • Filter shall have a low initial pressure drop that shall not exceed 0.26” W.G. at an air flow rate of 300
    • Filters shall be rated to withstand a continuous operating temperature of 200”F (93”C)
    • Filters shall have a recommended final resistance of 1.0” W.G
