Endress + Hauser

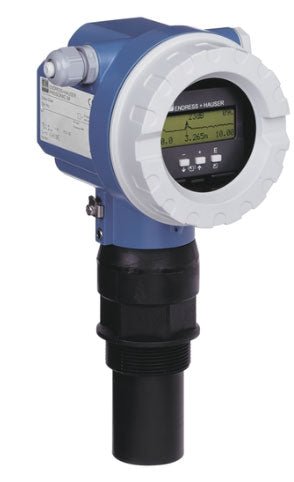

Endress + Hauser FMU41-ARB2A2

Add Your Review
Available: Out of Stock
$1,040.00
Pre-order
Successful pre-order.Thanks for contacting us!

Two-wire or four wire instrument for continuous non-contact level and flow measurement.

  • Process connection: Thread

  • Temperature: -40 to +80°C (-40 to +176°F)

  • Pressure: +0.7 to +3bar (+10 to +44psi)

  • Maximum measuring distance: Liquids 8m (26ft), Solids 3.5m (11ft)

  • Blocking distance: Liquids and Solids 0.35m (1.15ft)

  • International explosion protection certificates

    Features and specifications


    Measuring principle
    Ultrasonic
    Characteristic / Application
    Compact ultrasonic transmitter
    Supply / Communication
    2/4-wire (HART), PROFIBUS PA, FOUNDATION Fieldbus
    Accuracy
    +/- 2 mm or +/- 0,2 % of set measuring range 1)
    Ambient temperature
    -40 °C ... 80 °C
    (-40 °F ... 176 °F)

Two-wire or four wire instrument for continuous non-contact level and flow measurement.

  • Process connection: Thread

  • Temperature: -40 to +80°C (-40 to +176°F)

  • Pressure: +0.7 to +3bar (+10 to +44psi)

  • Maximum measuring distance: Liquids 8m (26ft), Solids 3.5m (11ft)

  • Blocking distance: Liquids and Solids 0.35m (1.15ft)

  • International explosion protection certificates

    Features and specifications     Measuring principle Ultrasonic Characteristic / Application Compact ultrasonic transmitter Supply / Communication 2/4-wire (HART), PROFIBUS PA, FOUNDATION Fieldbus Accuracy +/- 2 mm or +/- 0,2 % of set measuring range 1) Ambient temperature -40 °C ... 80 °C (-40 °F ... 176 °F)
