Dräger-Tube Hydrogen Sulfide 5/b - PN: CH29801
Dräger-Tube Hydrogen Sulfide 5/b - PN: CH29801
$106.00

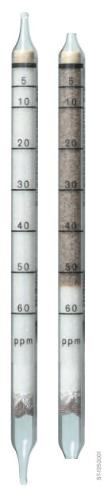

Dräger-Tube Hydrogen Sulfide 5/b (10 Tests per Box)
PN: CH29801
Dräger-Tubes™ are used together with a Dräger tube pump for measurements of gases, vapors and aerosols, usually in air, and are one of the classic methods of gas analysis. This Dräger-Tube is used for the detection of hydrogen sulfide and has the following standard measuring range: 5-60 ppm Measurements: 10
| Application Range | |
| Standard Measuring Range | 5 to 60 ppm |
| Number of Strokes n | 10 |
| Time for Measurement | approx. 4 min |
| Standard Deviation | ± 5 to 10% |
| Color Change | brown yellow to white |
| Ambient Operating Conditions | |
| Temperature |
0 to 60 °C |
| Absolute Humidity | < 40 mg H2O/L |
| Cross Sensitivity |
| Sulfur dioxide can cause plus errors of up to 50%. Sulfur dioxide alone does not discolor the indicating layer. |
|
Extension of the Measuring Range |
| Using n=1, multiply the reading by 10; the measuring range will be 50 to 600 ppm. |
