Dräger-Tube Carbon Dioxide 5%/a - PN: CH20301
Dräger-Tube Carbon Dioxide 5%/a - PN: CH20301
$129.00

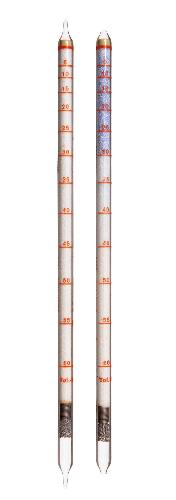

Dräger-Tube Carbon Dioxide 5%/a (10)
PN: CH20301
Dräger-Tubes™ are used together with a Dräger tube pump for measurements of gases, vapors and aerosols, usually in air, and are one of the classic methods of gas analysis. This Dräger-Tube is used for the detection of carbon dioxide and has the following standard measuring range: 5-60 Vol% Measurements: 10
| Application Range | |
| Standard Measuring Range | 5 to 60 vo. % |
| Number of Strokes n | 1 |
| Time for Measurement | approx. 2 min |
| Standard Deviation | ± 5 to 10% |
| Color Change | white to violet |
| Ambient Operating Conditions | |
| Temperature |
0 to 40 °C |
| Absolute Humidity | max 50 mg H2O/L |
| Cross Sensitivity |
| Hydrogen sulphide is not indicated neat the limit value. Sulfur dioxide is indicated with approx. half sensitivity. |
