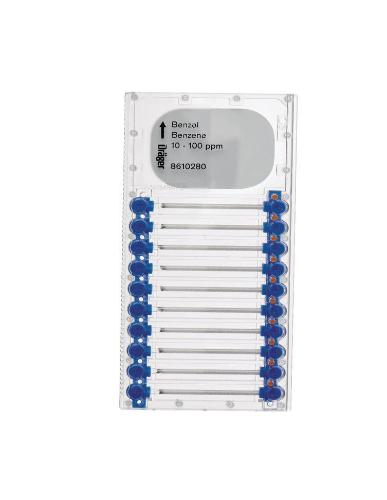

Draeger MT Benzene 10-100 ppm - PN : 8610280
Draeger MT Benzene 10-100 ppm
PN : 8610280
|
Measuring Range |
10 to 100 ppm |
| Typical Measuring Time |
10 to 75 s |
| Accuracy | ± 20% ( under calibration conditions ) |
|
Ambient Conditions |
|
| Temperature |
10 to 35 °C |
| Humidity |
1 to 30 mg/L |
|
Cross Sensitivity |
No influence at 50 ppm Benzene by: 2500 ppm n-octane 1000 ppm toluene 2500 ppm xylene |
| Hose and probe measurement |
The following flushing time recommendations for hose and probe measurement are marked with a brand-new , dry and clean hose and probes. |
| Hose |
Length ( meter ) |
Flashing time (min) |
| FKM hose |
5 - 20 |
3 |
| FKM hose |
45 |
5 |
| PTFE-line PVC hose |
3 - 15 | 3 |
| Bar probe 90 (83 16 532) |
2 | |
| Telescopic probe ES 150 ( 83 16 533) |
2 |
|
| Probe set GP600 )83 28 667) | 3 | |
