Delta DVS-008W01-MC02
Rated 3.5/5 based on 11 customer reviews

Delta DVS-008W01-MC02

$625.81

Delta Products

Ethernet Switches, DVS-008 Series

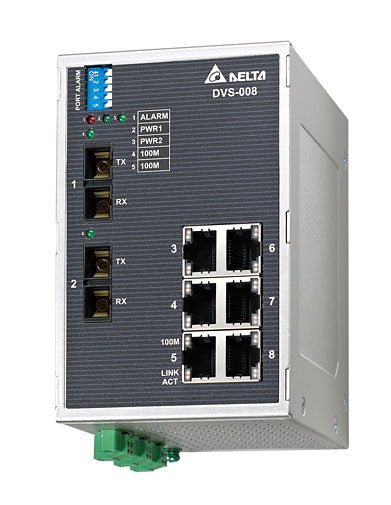

Item# DVS-008W01-MC02 - Wide Temp Unmanaged Ethernet Switch w/built-in alarm IO, 8 Ethernet Ports, & 2 MultiMode Fiber Ports



DVS-008 Series Information
Supports IEEE802.3x full/half‑duplex, auto‑MDI/MDI‑X.
Excellent ruggedized hardware design of 12 to 48 VDC redundant power inputs and a wide‑operating temperature from ‑40 C to 75 C without the use of internal fans are providing superior reliability.
DIP switches for built‑in alarm relay function, assisting network engineers with notification when port link‑down and power failures occur.



Specifications

Item Number:  DVS-008W01-MC02
Brand:Delta Products
Item Category:Networking and Communication
Subcategory:Ethernet Switches
Series:DVS-008
Network Configuration:Unmanaged
Total Number of Ports:8
Primary Port Style:RJ-45
Primary Port Standard:10Base-TX;100Base-TX
Primary Port Qty.:6
Secondary Port Style:SC Fiber Multi Mode 5km
Secondary Port Standard:100Base-FX
Secondary Port Qty.:2
Supply Voltage:12~48
Power Over Ethernet(PoE):No
MAC Addresses:8,000
Enclosure Rating:IP40
Enclosure Composition:Metallic
Mounting:DIN Rail/Wall
Operating Temperature:-40 to 167 Degrees F
Approvals:UL

Delta Products

Ethernet Switches, DVS-008 Series

Item# DVS-008W01-MC02 - Wide Temp Unmanaged Ethernet Switch w/built-in alarm IO, 8 Ethernet Ports, & 2 MultiMode Fiber Ports



DVS-008 Series Information Supports IEEE802.3x full/half‑duplex, auto‑MDI/MDI‑X.
Excellent ruggedized hardware design of 12 to 48 VDC redundant power inputs and a wide‑operating temperature from ‑40 C to 75 C without the use of internal fans are providing superior reliability.
DIP switches for built‑in alarm relay function, assisting network engineers with notification when port link‑down and power failures occur.



Specifications

Item Number:  DVS-008W01-MC02 Brand:Delta Products Item Category:Networking and Communication Subcategory:Ethernet Switches Series:DVS-008 Network Configuration:Unmanaged Total Number of Ports:8 Primary Port Style:RJ-45 Primary Port Standard:10Base-TX;100Base-TX Primary Port Qty.:6 Secondary Port Style:SC Fiber Multi Mode 5km Secondary Port Standard:100Base-FX Secondary Port Qty.:2 Supply Voltage:12~48 Power Over Ethernet(PoE):No MAC Addresses:8,000 Enclosure Rating:IP40 Enclosure Composition:Metallic Mounting:DIN Rail/Wall Operating Temperature:-40 to 167 Degrees F Approvals:UL
