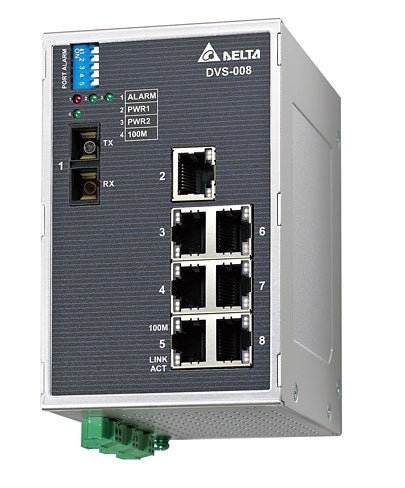

Delta DVS-008W01-MC01
Rated 3.5/5 based on 11 customer reviews

Delta DVS-008W01-MC01

$517.90

DVS-008W01-MC01

Redundant 12 to 48VDC terminal block power input.
Supports IEEE 802.1p based QoS for packet forwarding precedence.
Broadcast Storm Protection.
Transparent transmission of VLAN tagged packets.
Auto warning for link-down and power failure by relay output.
Fanless, IP40 Aluminum case.
Patent combination design for DIN-Rail and Wall mounting installation.
Wide operating temperature -40deg to 75deg.
UL508, CE and FCC certified
UL508, CE and FCC certified

Ethernet port: 7 10/100Base-T(X) + 1 100Base-FX (SC type, MultiMode).
Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-T(X) and 100Base-FX, IEEE 802.3x, IEEE 802.1p.
Processing Type: Store and Forward.
IEEE 802.3x flow control in full duplex, back-pressure flow control in half duplex, auto-MDI/MDI-X, non-blocking, wired speed.
Switching Capacity: 1.6Gbps.
MAC Table: 8K.
Packer Buffer Memory: 1M bits.
Packet Size: 64 to 1522 bytes.
Dip Switches: 5-pin, port link-down configuration.
Alarm Relay: MAX 5A@24VDC
