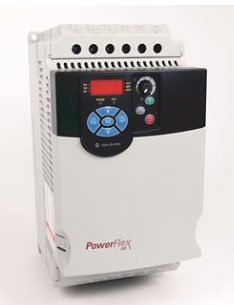

Allen Bradley 22FD013N104
Product Details
Brand Name
Allen-Bradley
Type
AC Drive
Description
AC Drive,5.5 kW (7.5 HP),480V AC Input,3 PH,50-60 Hz,13 A Output,IP20,UL-NEMA Type Open,Panel Mounting,With Brake IGBT,Frame C,0.98PF,Integral Keypad With Potentiometer And Led Display, RS485, Fixed Terminal Block Connections.
Standards
C-TICK, CE, CUL, GOST, KC, UL
Features
LED Display
Specifications
| Brake IGBT: | Included |
| Connection: | Fixed Terminal Block |
| Control: | RS485 |
| Country of Origin: | CN |
| Enclosure: | IP20,UL-NEMA Type Open |
| Frequency Rating: | 50-60 |
| Input Voltage Rating: | 480V AC |
| Mounting: | Panel Mount |
| Output Current Rating: | 13 A |
| Power Factor: | 0.98 |
| Power Rating: | 5.5 kW (7.5 Hp) |
| Sub Brand: | PowerFlex 4M |
| User Interface: | Keypad With Potentiometer |
Product Details
Brand Name
Allen-BradleyType
AC DriveDescription
AC Drive,5.5 kW (7.5 HP),480V AC Input,3 PH,50-60 Hz,13 A Output,IP20,UL-NEMA Type Open,Panel Mounting,With Brake IGBT,Frame C,0.98PF,Integral Keypad With Potentiometer And Led Display, RS485, Fixed Terminal Block Connections.Standards
C-TICK, CE, CUL, GOST, KC, ULFeatures
LED DisplaySpecifications
| Brake IGBT: | Included |
| Connection: | Fixed Terminal Block |
| Control: | RS485 |
| Country of Origin: | CN |
| Enclosure: | IP20,UL-NEMA Type Open |
| Frequency Rating: | 50-60 |
| Input Voltage Rating: | 480V AC |
| Mounting: | Panel Mount |
| Output Current Rating: | 13 A |
| Power Factor: | 0.98 |
| Power Rating: | 5.5 kW (7.5 Hp) |
| Sub Brand: | PowerFlex 4M |
| User Interface: | Keypad With Potentiometer |
