Dräger Oil impactor - PN 8103560
Rated 3.5/5 based on 11 customer reviews

Dräger Oil impactor - PN 8103560

$107.00

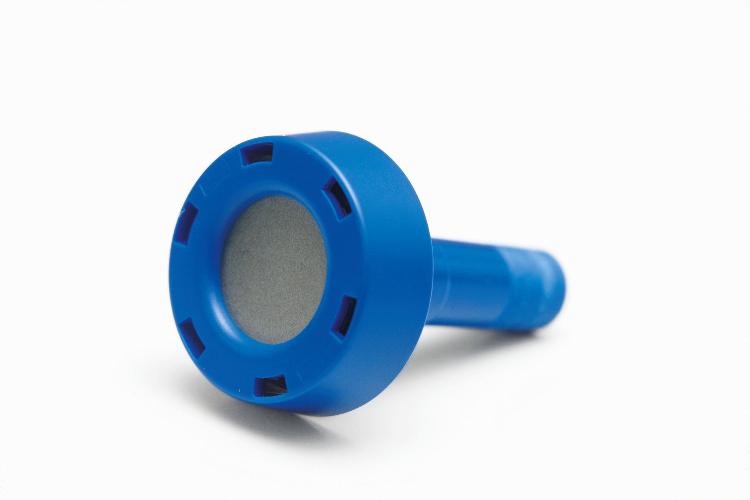

Dräger Oil impactor (Pkg of 10)
PN: 8103560

The Dräger Oil Impactor is specially designed to test compressed air for oil aerosols. For the first time, not only conventional oils but also synthetic oils – regardless of type and viscosity – can be measured easily and precisely.

Standard Measuring Range: 0.1 mg/m3, 0.5 mg/m3, 1.0 mg/m3 Oil mist (Oil Aerosols)
Detection Limit: 0,05 mg/m3 Oil mist
Test Volume: 20 L
Volumenstrom: 4 L/min
Time for Measurement: 5 min

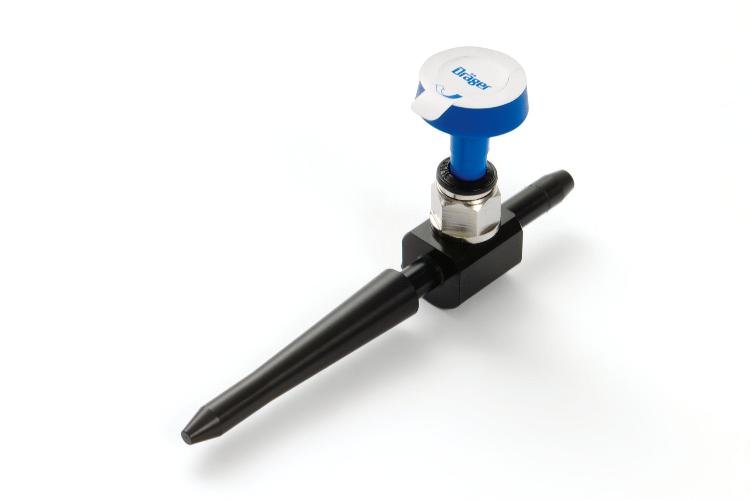

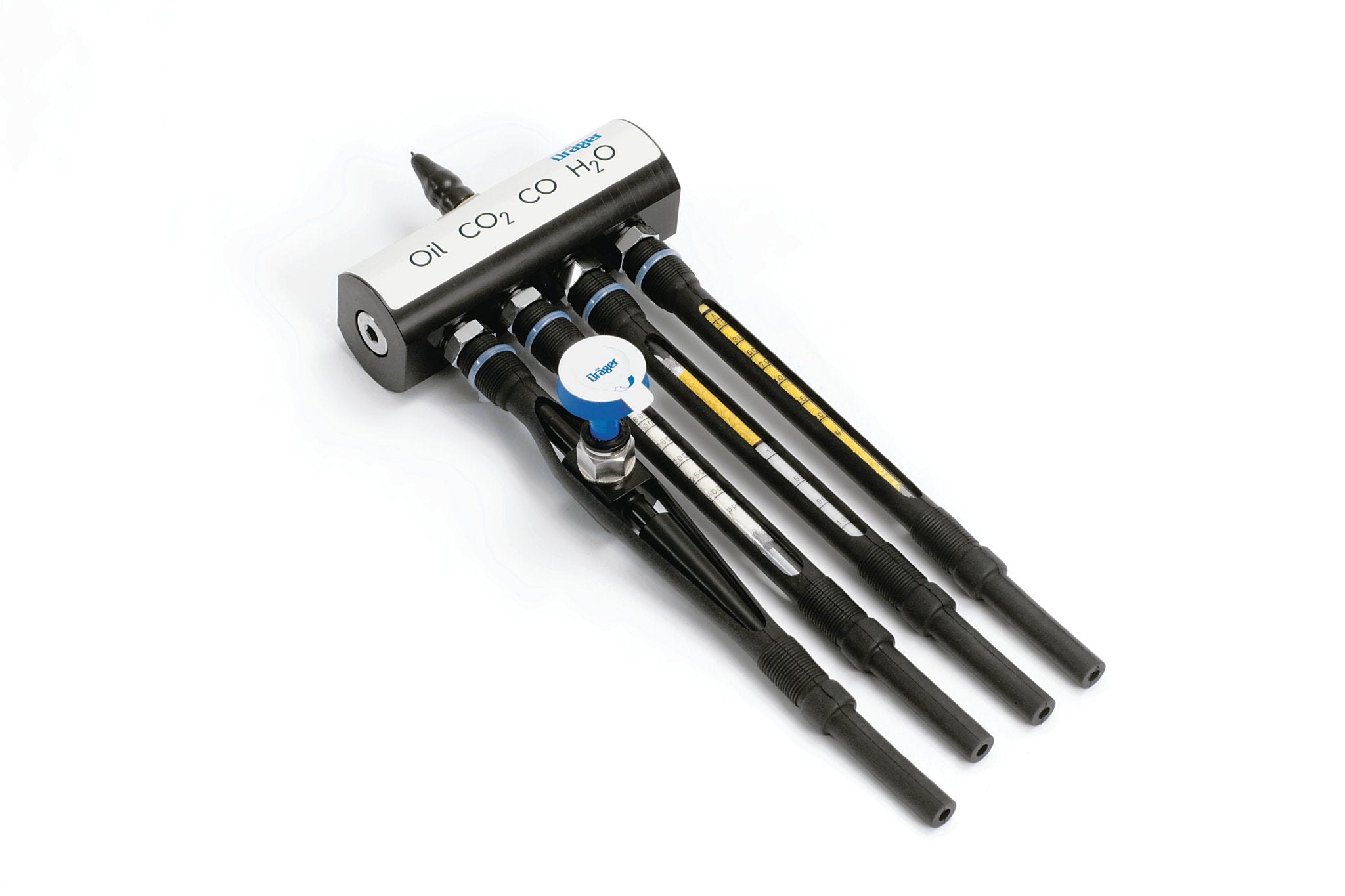

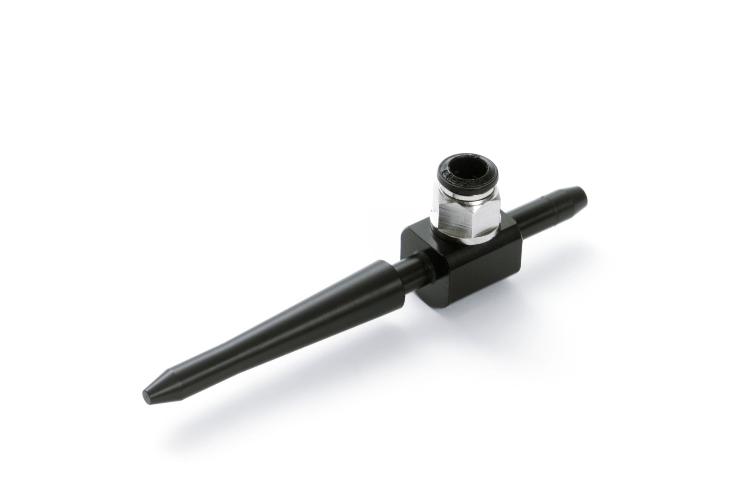

Additional Information: The Impactor has to be used together with the Adapter of the Impactor (Order No. 81 03 557) in conjunction with the Dräger Aerotest Simultan.

Dräger Oil impactor (Pkg of 10)
PN: 8103560

The Dräger Oil Impactor is specially designed to test compressed air for oil aerosols. For the first time, not only conventional oils but also synthetic oils – regardless of type and viscosity – can be measured easily and precisely.

Standard Measuring Range: 0.1 mg/m3, 0.5 mg/m3, 1.0 mg/m3 Oil mist (Oil Aerosols)
Detection Limit: 0,05 mg/m3 Oil mist
Test Volume: 20 L
Volumenstrom: 4 L/min
Time for Measurement: 5 min

Additional Information: The Impactor has to be used together with the Adapter of the Impactor (Order No. 81 03 557) in conjunction with the Dräger Aerotest Simultan.
