Delta

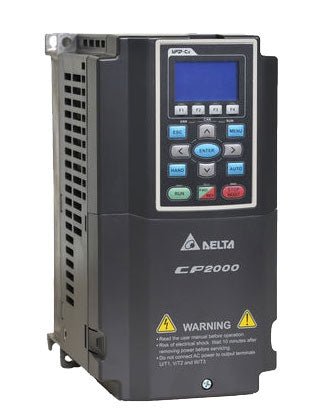

Delta VFD450CP43S-21

Add Your Review
$3,139.61

Delta Products

AC Drives, CP2000 Series

Item# VFD450CP43S-21 - VFD-CP2000, 60HP 460V, 3phase input, Variable Torque Drive



CP2000 Series Information
  • With a built‑in 10K steps Delta PLC allows user to execute distributional control and independent control when connecting to a network system. Delta CP2000 series drives provide you the intelligent control possibility beyond your imagination.
  • The calendar function allows user to program the PLC procedure, the ON/OFF in chronological order, the daylight saving time and etc.
  • A wide range of models (0.75~400KW) to fulfill the demands of different industries.
  • The modularized design eases the maintenance and expansion.
  • High speed communication interfaces with MODBUS protocol and BACnet protocol built in. Diverse communication methods to satisfy clients@@ needs on multi‑controls. So the following options are available for you: the ProfiBUS‑DP, the DeviceNet, the MODBUS TCP, the Ethernet‑IP and the CANopen Cards.
  • Long‑life design and self diagnosis for key components.
  • Special PCB coating design (Printed Circuit Board) for enhancing environmental tolerance.
  • Complied with global safety standards: CE, UL and cUL
  • Standard LCD model (IP20/NEMA1) with built‑in PLC to support up to 10K steps
  • Excellent heat‑sink design. Able to operate at 50°C ambient temperature and to adjust automatically rated output value to make the AC drive to work continuously.
  • Run fire mode while emergency to have uninterrupted smoke releasing and pressure adding
  • Multi pumps control at fixed amount, fixed time circulating control. Able to control 8 pumps at the same time. (Such as Image01 and Image02, optional multi‑control relay card is required.)



Specifications

Item Number:  VFD450CP43S-21
Brand:Delta Products
Item Category:Drives
Subcategory:AC
Series:CP2000
Nominal Input VAC:480 Volts AC
Input Range VAC:380 to 480 Volts AC
Input Phase:3
HP (VT): 60 Horsepower
Amps (VT): 73 Amps
Max. Frequency: 599 Hertz
Braking Type: DC Injection
AC Line Regenerative?: No
Closed Loop: No
Motor Control-Max Level: Open Loop Vector (Sensorless Vector)
Operator Controls: Keypad Included
Enclosure Rating: IP20;NEMA 1
Mounting: Wall or Panel
Frame Size:D0
