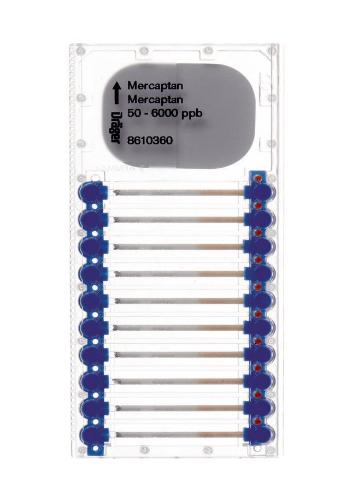

Dräger Mercaptan 50 – 6,000 ppb - PN 8610360
Dräger Mercaptan 50 – 6,000 ppb
PN : 8610360
|
Measuring Range |
50 to 6000 ppm |
| Typical Measuring Time |
15 to 360 s |
| Accuracy | ± 25% ( under calibration conditions ) |
|
Ambient Conditions |
|
| Temperature |
10 to 40 °C |
| Humidity |
1 to 40 mg/L |
|
Cross Sensitivity |
No influence at 500 ppb mercaptan (methyl mercaptan) by: 0.5 ppm hydrogen sulfide 15 ppm carbon monoxide 0.5 ppm ethyl mercaptan 0.5 propyl mercaptan 0.5 ppm ret. butyl mercaptan |
| Hose and probe measurement |
The following flushing time recommendations for hose and probe measurement are marked with a brand-new , dry and clean hose and probes. |
| Hose |
Length ( meter ) |
Flashing time (min) |
| FKM hose |
5 - 20 |
4 |
| FKM hose |
45 |
5 |
| PTFE-line PVC hose |
3 - 15 | 3 |
| Bar probe 90 (83 16 532) |
2 |
|
| Telescopic probe ES 150 ( 83 16 533) |
3 | |
| Probe set GP600 )83 28 667) | 4 | |
