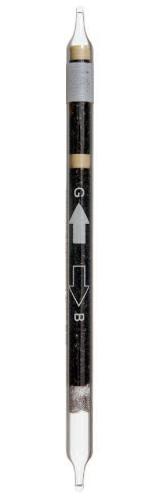

Dräger-Tube Activated Charcoal Tube (Type B/G) - PN: 8101821
Dräger-Tube Activated Charcoal Tube (Type B/G)
PN: 8101821
With the Dräger activated carbon tubes, the hazardous substances contained in the air are first collected by adsorption or chemisorption. The sample is then qualitatively and quantitatively tested in the laboratory using instrumental analysis such as gas chromatography (GC), high-performance liquid chromatography (HPLC), UV-VIS photometry or IR spectroscopy. Measurements: 10
· ORSA for organic compound lab analysis
| Application Range | |
| Adsorbate | organic compounds which adsorb on activated charcoal |
| Sorption agent | coconut shell charcoal |
| Adsorption layer |
300 mg / 700 mg |
| Backup layer |
700 mg / 300 mg |
| Tube Length |
125 mm |
| Outside diameter |
7 mm |
| Inside diameter | 5 mm |
| Advice for sample-taking |
| This tube can be admits optionally in both directions. The type G tube can be used especially for sample taking of organic compounds, if highly concentrations in the air (e.g. exhaust air) are expecting. For the workplace measurement the tube typ B can be used (Measurement in AGW or TLV Range). When the sampling in finished , tube have to bee closed with the polyethylen caps and the sample direction is to be written down on the sample taking protocol. |
