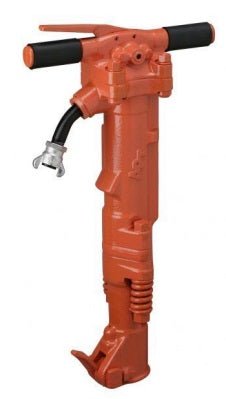

APT 190A AIRGO-LINE PAVING BREAKER 1-1/4" x 6" - PN 18619
- Category: American Pneumatic Tools (APT)
The Model 190A Airgo-Line® Paving Breaker is a 90 lb class tool. The ergonomically designed handle helps reduce harmful vibration to the hands and arms of the operator. This versatile tool is based on the standard Model 190, the tool being easily converted to the standard handle or ergonomic handle or vice-versa. No power is lost from the standard tool but does increase efficiency and output due to the reduction in operator fatigue.
SPECIFICATIONS
Part # 18619
Chuck Size (hex) 1-1/4″ x 6″
Bore Diameter (inches) 2-5/8″
Stroke (inches) 6-1/8″
Blows per Minute 1350
CFM @ 90 psi 75 - 80
Weight (lbs) 90
Length (inches) 31″
Air Inlet Size 3/4″ MALE NPT
FEATURES
AIRGO-LINE® Ergonomic Back Head
(interchangeable with standard Back Head)
reduces operator fatigue
Patented Automatic Ball Valve
(Pat. # 8,276,682 B2)
Built in automatic oiler
Rubber handle grips
Latch type retainer
Swivel hose connection
Four bolt back head
Noise dampening muffler available
Universal hose connector supplied
