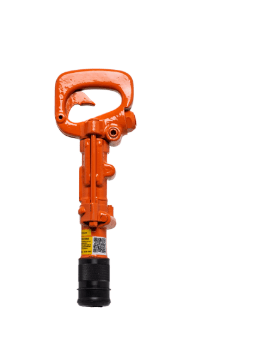

APT - 109 ROCK DRILL (Round Shank) - PN : 17643
APT - 109 ROCK DRILL (Round Shank)
3/4" x 3-3/4"
PN : 17643
Weighing only 9lbs, the APT Model 109 Rock Drill & Utility Drill is the lightest tool American Pneumatic makes. It is the ideal tool for drilling holes for anchor bolts, as well as for small dowel hole drilling. The stop rotation feature easily converts the tool from a drilling machine to a percussion only tool.
| TECHNICAL INFORMATION | ||
| Chuck Size | in | 3/4" Round x 3 - 3/4" |
| Bore diameter | in | 1 - 3/4 |
| Stroke | in | 1 |
| Blows per minute | bpm | 3,400 |
| CFM @ 90 psi | cfm | 19-21 |
| Weight | lbs | 9 |
| Length | in | 15 |
| Air inlet NPT | 3/8" NPT Female | |
